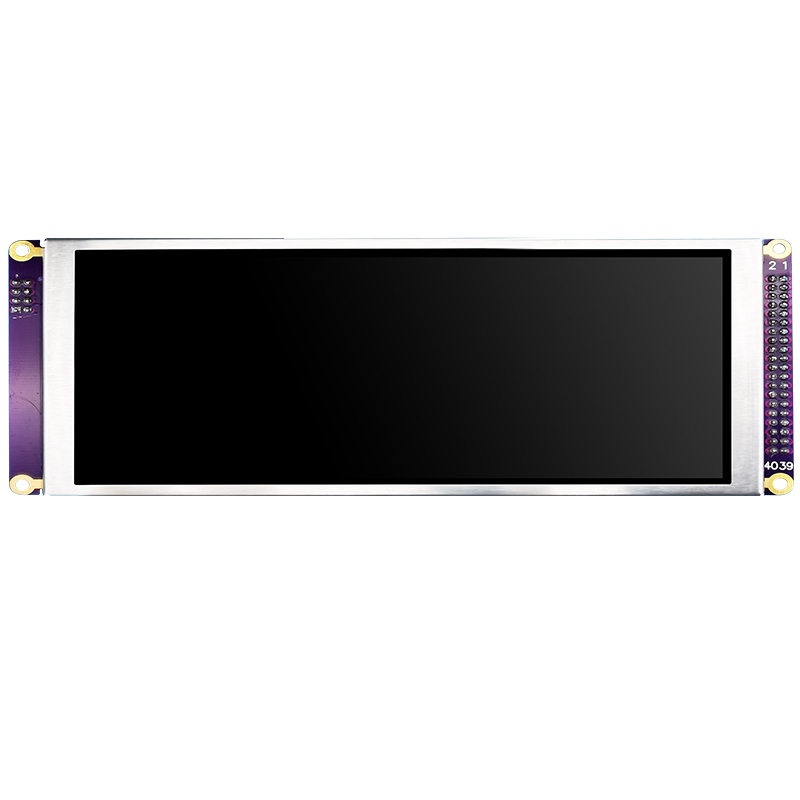

Product type：TFT Module

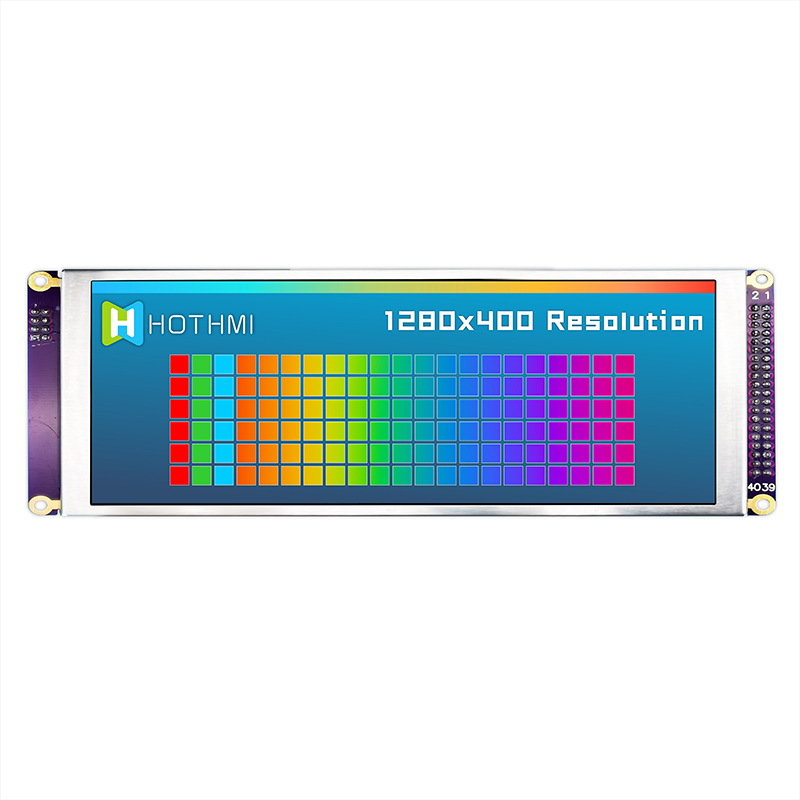

Show contents：1280x400
Outline size(mm) ：221.8×71.8×9
Size of View Window(mm)：7.84
Display size(mm) ：7.84
Effective size(mm)：190.88x60.2
Product application：Vehicle, medical, industrial control

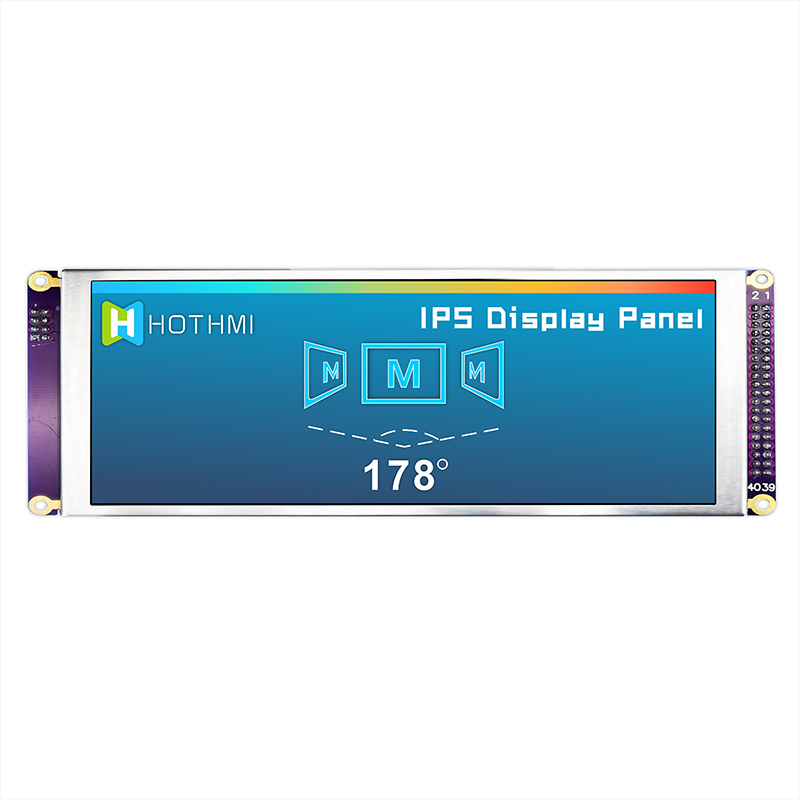

Visual angle：Full view

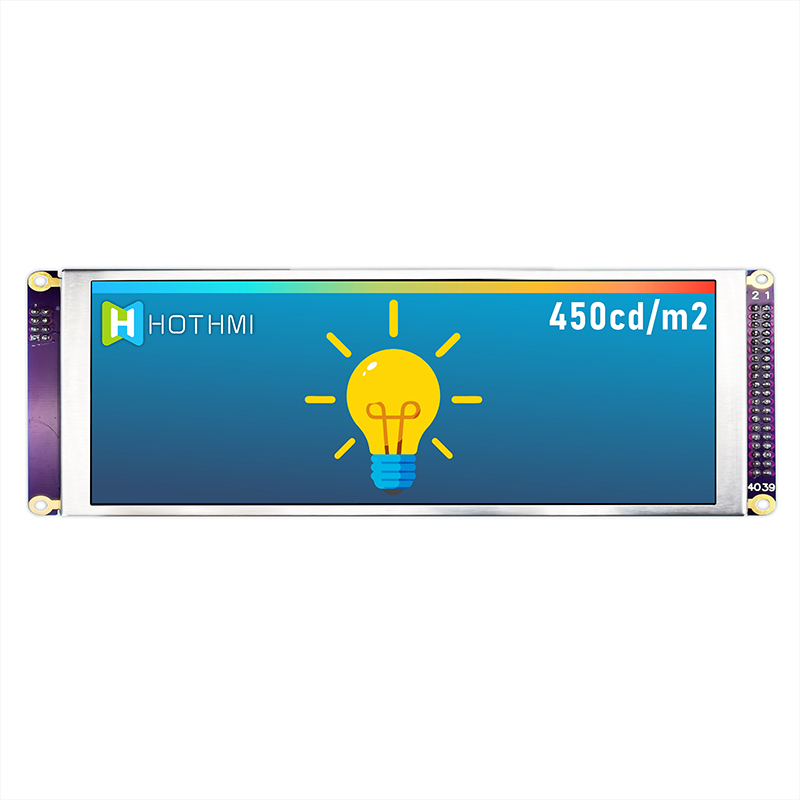

Backlight type or brightness：450cd/m2
Connection PIN Number：48pin
Interface mode：MCU

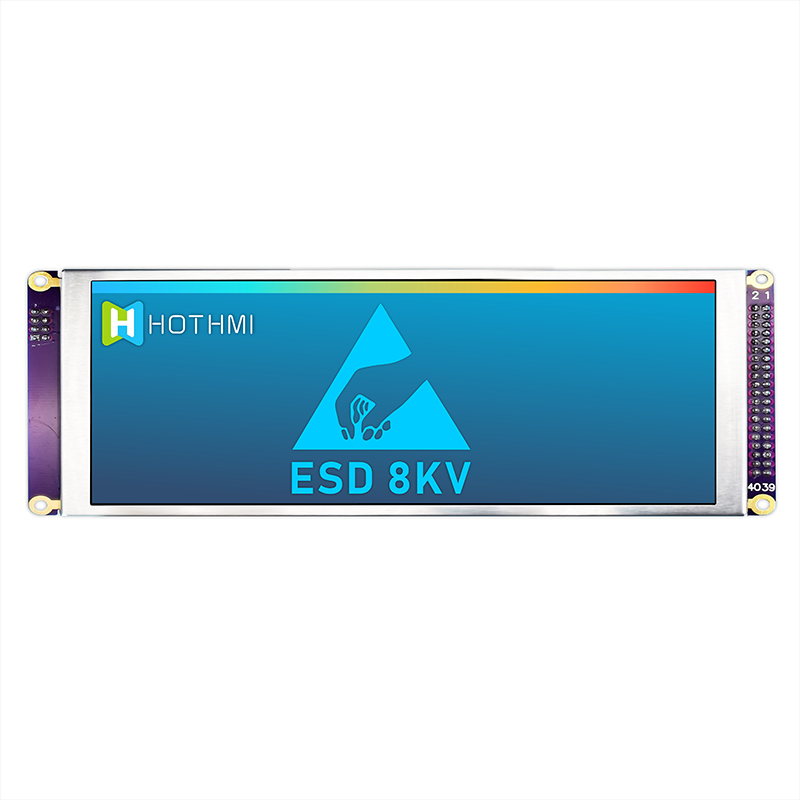

Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：3.3V

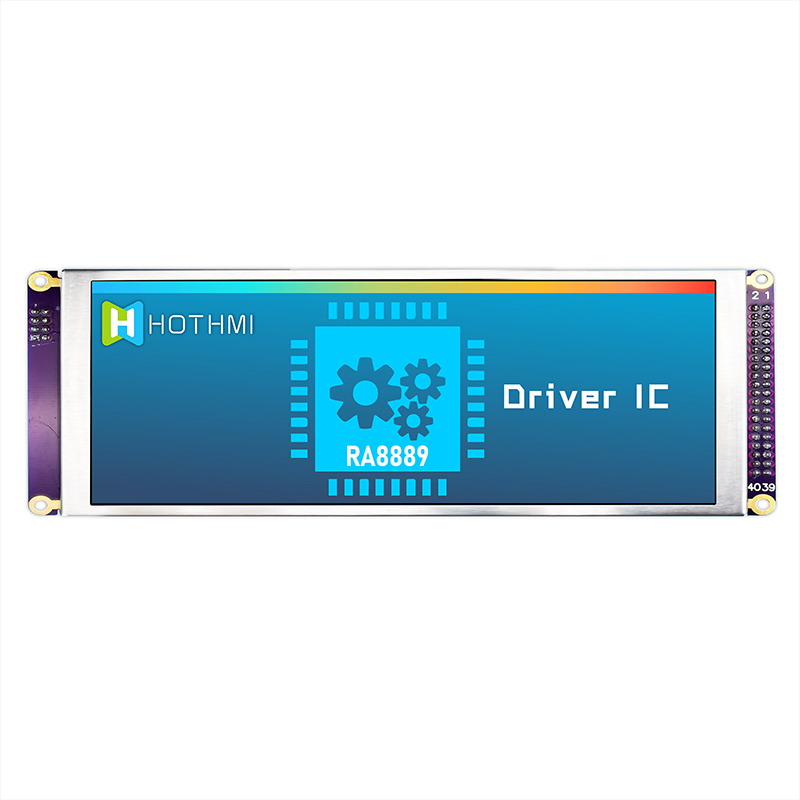

Driver chip model：RA8889

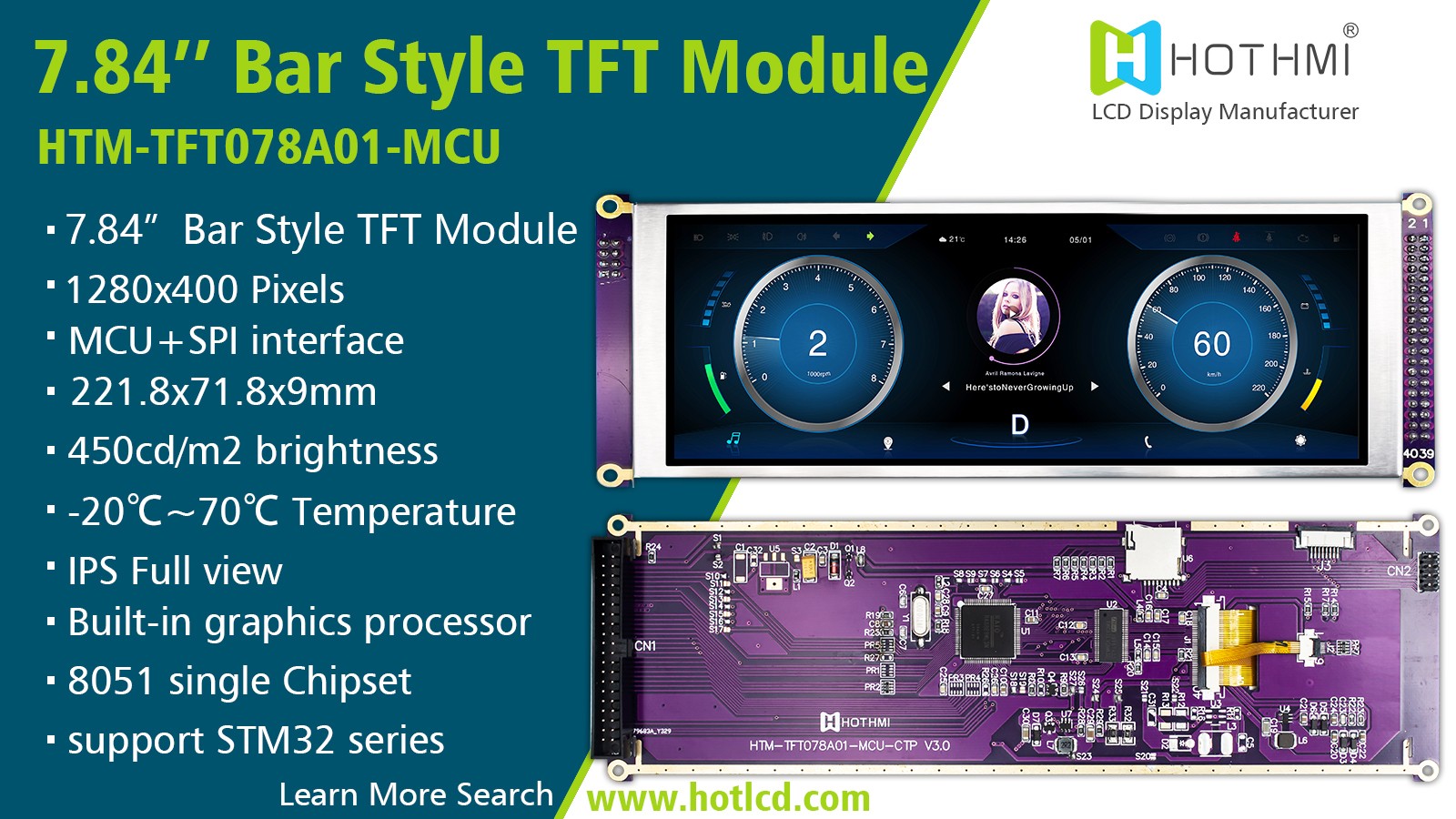

Here is the translated version of the specifications for the HTM-TFT078A01-MCU product:

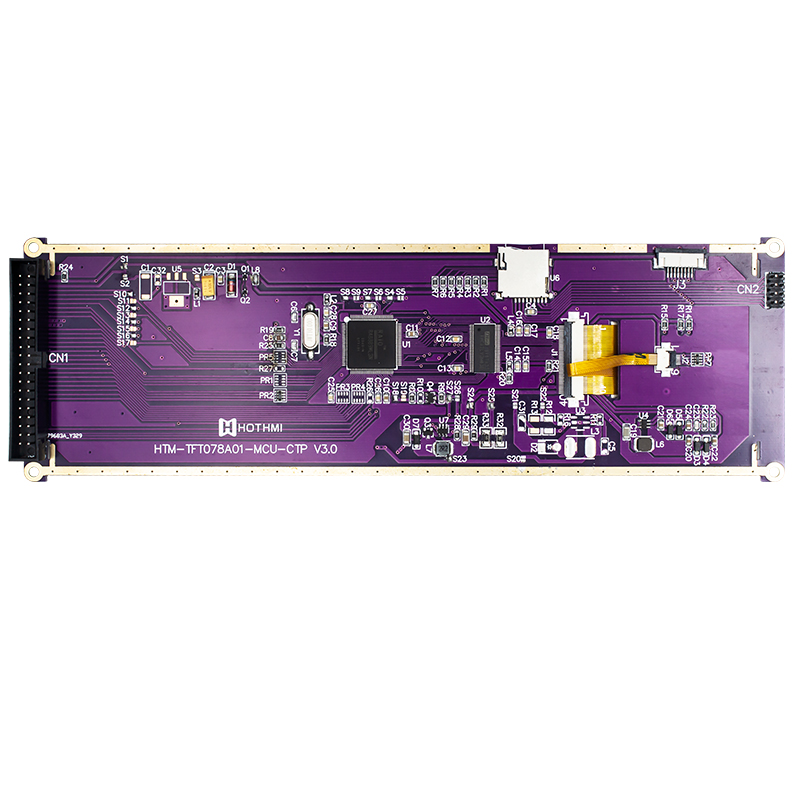

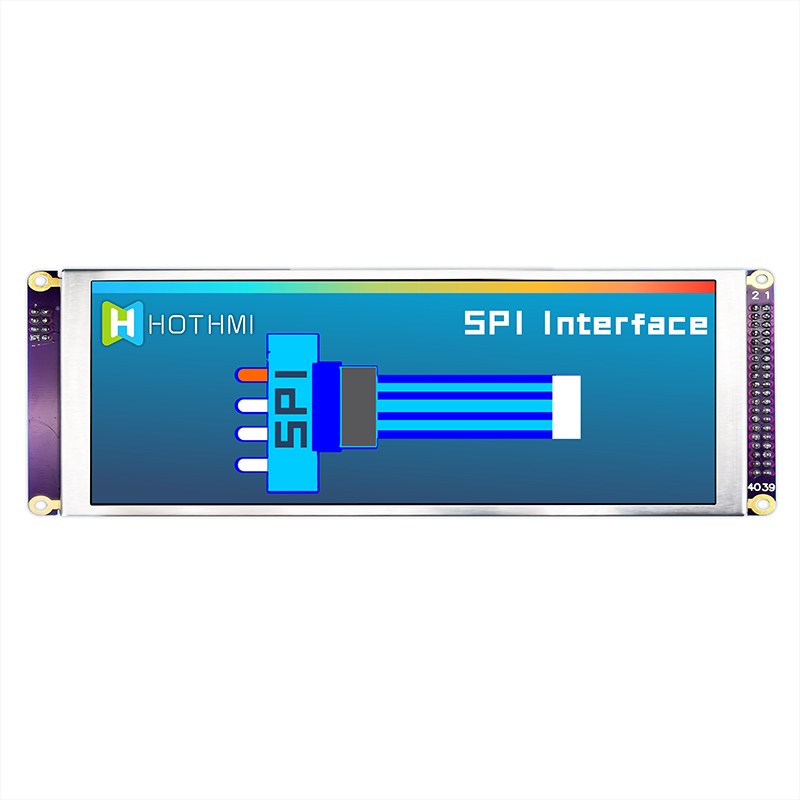

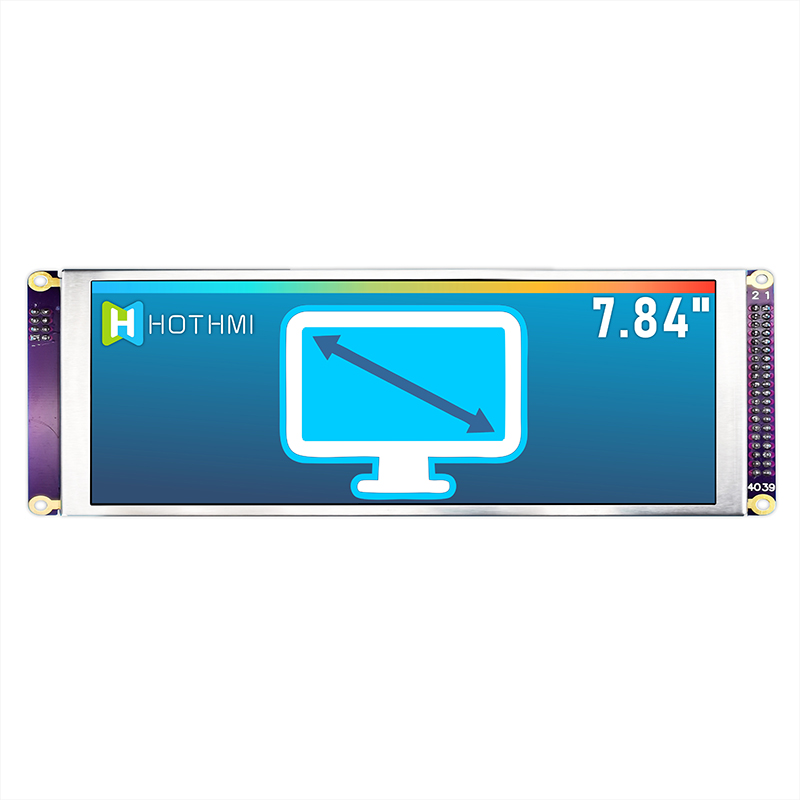

Screen Type: 7.84-inch Bar Style IPS TFT LCD Display Resolution: 1280x400 pixels LCD Controller Board: Included Luminance: 450cd/m2 Interface: MCU+SPI TFT Module Operating Temperature Range: -20°C to 70°C Built-in Graphics Processor Single Chipset: 8051 Supports STM32 series chipsets
The HTM-TFT078A01-MCU product offers the following key specifications. It features a 7.84-inch high-resolution IPS TFT LCD display with an included LCD controller board. The interface supports MCU+SPI, and it comes as a TFT module.
With a luminance of 450cd/m2, it provides bright and clear visuals. The product operates within a temperature range of -20°C to 70°C, making it suitable for various environments. It also includes a built-in graphics processor for enhanced image processing capabilities.

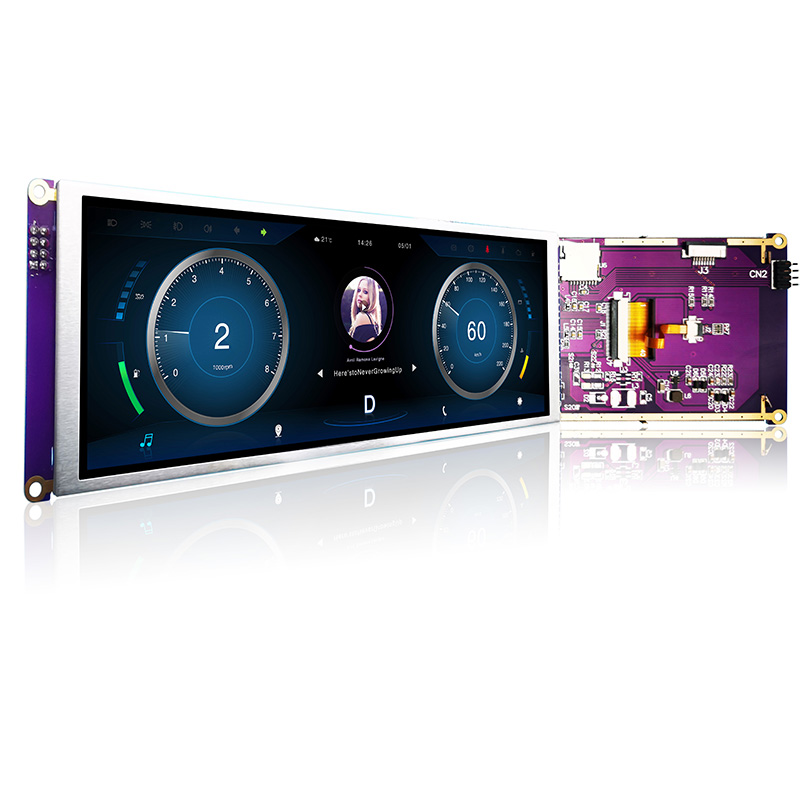

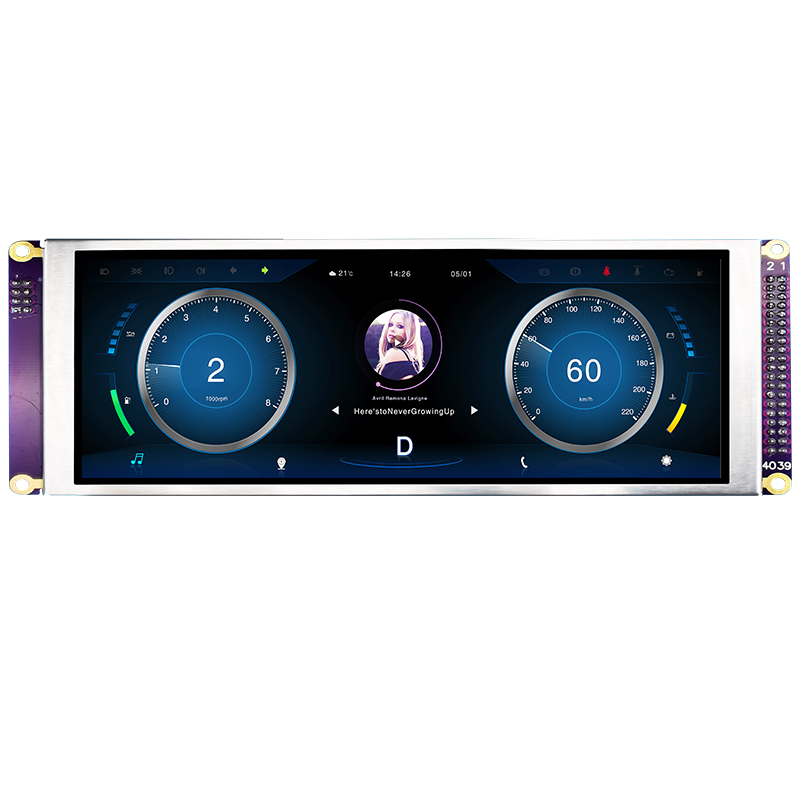

The HTM-TFT078A01-MCU utilizes a single 8051 chipset and offers compatibility with STM32 series chipsets. It is designed specifically for car monitors, providing excellent visual performance and touch interaction experience.
